Quick Answer: 4R70W Fluid Capacity at a Glance
| Service Type | Fluid Required | Fluid Spec |
|---|---|---|
| Pan drop + filter (standard service) | ~5–6 quarts | Mercon V ATF |
| Torque converter drain (if equipped with drain plug) | +3–4 quarts additional | Mercon V ATF |
| Complete dry fill (new/rebuilt unit) | ~13.9 quarts | Mercon V ATF |
| Multiple drain-and-fill (fluid exchange) | 5–6 qts × 3 cycles | Mercon V ATF |
Capacity figures based on Ford service documentation. Actual refill quantity varies by pan depth, auxiliary cooler line volume, and torque converter retention. Always verify level via dipstick at operating temperature.
What the 4R70W Actually Is — and Why It Matters for Service
The 4R70W is a four-speed automatic overdrive transmission introduced by Ford as a direct evolution of the AODE. It appeared in a wide range of Ford and Lincoln-Mercury platforms from 1993 through approximately 2008, including the F-150, Mustang GT, Expedition, Crown Victoria, Grand Marquis, Explorer, and E-150 van. Ford later evolved it into the 4R75W and 4R75E, which share the same basic case architecture and fluid specification but carry slightly different gear ratios and valve body calibrations.
The transmission uses a hydraulic control system dependent on proper ATF viscosity and friction modifier chemistry. Mercon V is a specific Ford-licensed fluid with friction additive packages designed for this unit’s clutch pack material. Running a Dexron-VI or a generic “multi-vehicle” ATF in a 4R70W is a gamble — some owners report no issues for years, others see shudder on 3-2 downshifts within 20,000 miles. The Ford service manual is unambiguous: Mercon V is the specified fluid. That hasn’t changed.
4R70W Fluid Capacity: Breaking Down Each Scenario
Standard Pan-Drop Service (Most Common)
This is what most owners do — drop the pan, swap the filter and gasket, reinstall, and refill. In practice:
- Fluid drained: approximately 5 to 6 quarts come out of the pan
- Fluid retained: the torque converter holds 3 to 4 quarts that do not drain unless the converter has a drain plug (most stock units do not)
- Fluid to add: start with 5 quarts, check the dipstick warm, add in half-quart increments to reach the FULL mark at operating temperature (150–170°F)
One practical note from working on these: after reinstalling the pan and filter, add your initial 5 quarts before cranking the engine. Crank it, let it idle for 30 to 60 seconds, shift through all positions (P-R-N-D-3-2-1), then return to Park. Check the dipstick immediately. You’ll typically need another half to full quart to reach the correct operating-temperature level. On a 1998 F-150 with the 4.6L and a standard-depth pan, the process comes out to about 5.5 quarts in most cases.
Multiple Drain-and-Fill Fluid Exchange
This is the approach worth considering when the fluid history is unknown — which is exactly the situation on a used truck purchase. One Reddit user with a 2006 F-150 at 170,000 miles described doing three sequential drain-and-fill cycles after buying the truck with no service records. The math: three 5-quart drain-and-fills replaces approximately 79% of the total fluid volume, diluting the degraded ATF without the aggressive shock of a full converter flush on a high-mileage unit.
The right interval for this method:
- Drain, fill 5–6 quarts, drive 50–100 miles
- Drain again, fill 5–6 quarts, drive another 50–100 miles
- Third drain, final fill — check color and smell
If the fluid coming out of the third drain is still dark brown or has a burned smell, that’s no longer a fluid problem. That’s a clutch pack problem.
Full Dry Fill — Rebuilt or Remanufactured Unit
This is the scenario where the torque converter has been either emptied or replaced, the transmission has been fully assembled dry, and you’re starting from zero. Per Ford service documentation, total system capacity is approximately 13.9 quarts. Some sources cite 12 to 14 quarts depending on model year — the variation reflects different pan depths, cooler line volumes on vehicles with towing packages, and whether an auxiliary transmission cooler is in the circuit.
For a completely dry rebuilt 4R70W going into a Classic Bronco swap or a 4R70W swap into an older Fox Body, the practical approach is:
- Pre-fill the torque converter with 2 quarts before installation where possible
- Add 6 quarts to the transmission before initial start
- Start the engine, idle for 60 seconds, cycle through gears
- Check dipstick, add until you reach the FULL mark on the cold side of the dipstick
- Drive 5–10 miles, recheck at operating temperature
- Final top-up to the FULL mark at operating temp
Do not overfill. The 4R70W is sensitive to overfill — foaming fluid from an overfilled transmission creates shift hesitation and solenoid problems that mimic much more serious failures.
Mercon V: Why the Fluid Specification Is Not Negotiable
Ford officially discontinued the original Mercon fluid specification in 2007, meaning fluids labeled only “Mercon” are no longer available in compliant form. Mercon V is the current correct specification for the 4R70W across its entire production run. Mercon V has a different friction modifier package than original Mercon, but it is backward-compatible with 4R70W applications.
What NOT to use:
- Mercon LV (this is for the 6R80 and later Ford units — different viscosity and friction chemistry)
- Dexron III or Dexron VI (GM specification, different friction modifier package)
- Generic “Type F” ATF (incorrect for this application — Type F has no friction modifiers and will cause clutch glazing)
- “Universal” ATF without explicit Mercon V certification on the label

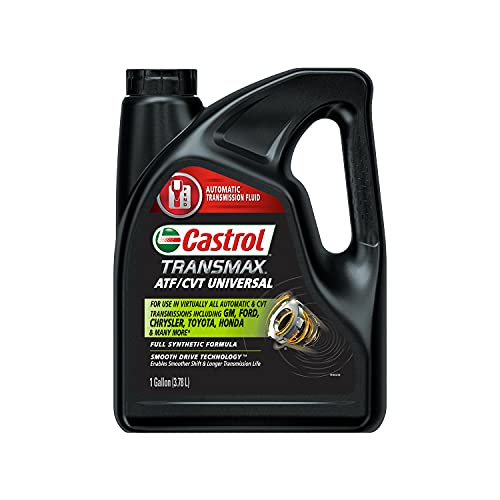

The Castrol Transmax ATF/CVT Universal meets multiple OEM specifications and is marketed as compatible with Mercon V applications. If you use a universal fluid, verify the bottle explicitly states Mercon V compatibility — not just “compatible with most domestic transmissions.” Vague language on the label is a red flag.
Products for 4R70W Fluid Service
Service Kit: Fluid + Filter + Gasket (Complete Pan-Drop)
One-box pan-drop kit with Mercon V fluid, filter, and gasket; covers 1994–2010 Ford applications.
- Complete pan-drop kit in one purchase
- Includes fluid + filter + gasket
- Covers 4R70W/4R75W/4R75E
- Reduces parts sourcing errors
- 5 quarts may require small top-up after fill
- No torque converter drain fluid included
- Rating data not yet available
For a standard pan-drop service on a 2001 F-150 with the 4R70W, this type of kit is the practical choice — you’re buying fluid, filter, and gasket in one transaction instead of sourcing three separate items and risking a fluid spec mismatch. The 5 quarts included covers the standard drain; have an extra quart of Mercon V on hand for the warm-check top-up. On most stock-pan applications, you’ll add between a quarter and a half quart to reach the FULL mark at operating temperature.
Who this is for: Owners doing a first-time service on a recently purchased used F-150, Mustang, or Crown Vic with unknown fluid history. Also appropriate for 60,000-mile interval service on a maintained vehicle.
Who should look elsewhere: If you’re filling a completely rebuilt or remanufactured 4R70W from dry, you need approximately 13.9 quarts total — this kit covers a pan-drop service only. You’ll need additional fluid separately.
Filter Kit: Filter + Gasket Only (For Owners Who Already Have Fluid)
Filter and gasket kit for pan-drop service; replaces OE# FT105, F6AZ7A098A, 58955 across 1994–2010 Ford applications.
- Replaces OE filter numbers FT105 and F6AZ7A098A
- Covers broad 1994–2010 application range
- Filter-only purchase for owners stocking their own Mercon V
- Compatible with 4R75W and 4R75E
- No fluid included — requires separate Mercon V purchase
- Rating data not yet available
- Verify VIN application before ordering
The filter on a 4R70W is a spin-in style pickup screen at the bottom of the valve body. It doesn’t restrict flow dramatically until it’s severely clogged, but degraded filter media can shed particles into the fluid circuit — and on a high-mileage 4R70W, those particles end up in your solenoid pack. Replacing the filter at every pan-drop service is not optional if you’re trying to extend the life of the transmission. A 2000 Grand Marquis at 150,000 miles seeping from a pan gasket is exactly the situation where a filter and gasket kit makes sense before addressing the seal — you’re already in the pan, so there’s no reason to skip the filter.
Who this is for: Fleet owners or shops that keep Mercon V in bulk and need filter/gasket kits as standalone consumables. Also appropriate for owners doing repeat drain-and-fills who already have fluid on hand from a previous service.
Who should look elsewhere: Single-service DIY owners are usually better served by the complete service kit that includes fluid — the price difference is minimal and the fluid spec risk is eliminated.
Direct-fit filter and gasket kit with OE replacement numbers; covers the same broad application range as Ford OE part FT105.
- OE replacement for FT105 and F6AZ7A098A
- Application covers 1994–2010 Ford F-150 and Mustang
- Filter + gasket in one kit
- Straightforward fitment for pan-drop service
- No fluid included
- No independent rating data available
- Confirm fitment via VIN for edge-case model years
ATF Fluid: Castrol Transmax (For Bulk or Supplemental Fill)
Mercon V-compatible universal ATF; suitable as supplemental fluid for 4R70W top-up or multi-drain exchange cycles.
- Mercon V compatible specification
- 1-gallon format for incremental top-up or exchange service
- Multi-vehicle compatibility reduces stocking overhead
- Widely available
- Universal fluids should be verified against OE spec before use — confirm Mercon V on label
- Not Ford-licensed fluid — some owners prefer OEM-spec branded products
- Rating data not yet available
For a three-cycle drain-and-fill exchange on a high-mileage 4R70W — the approach that makes sense when you have no idea what went in before — gallon-format ATF is the practical choice. Three drain-and-fills at 5 to 6 quarts each means you’re buying 15 to 18 quarts total. Buying by the gallon reduces cost per quart compared to individual quart bottles. That said, verify the label explicitly states Mercon V compatibility, not just “compatible with Ford automatic transmissions.” The friction modifier chemistry in Mercon V is what matters for clutch pack engagement feel; a generic ATF without the right friction package will shift differently, and not in a good way.

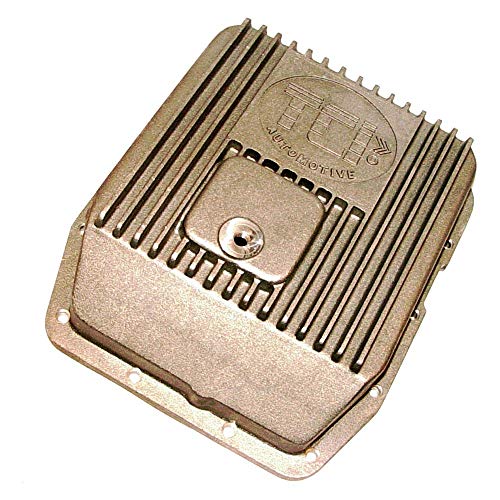

Deep Pan: TCI Cast Aluminum Deep Pan
Cast aluminum deep pan adds fluid capacity and improves heat rejection; fits AOD, AODE, and 4R70W; not for stock-clearance applications.
- Increased fluid capacity vs stock pan
- Cast aluminum improves heat dissipation
- Fits AOD / AODE / 4R70W family
- Drain plug included
- Requires longer drain plug seal than stock
- May have clearance issues in tight engine bay configurations
- Not a substitute for addressing underlying heat causes (towing load
- cooler size)
- Rating data not yet available
The TCI deep pan is worth understanding in context: it adds fluid volume, which means more thermal mass and slightly better heat management. For a Fox Body Mustang with a 4R70W swap running on a hot track day, or an older F-150 towing at the transmission’s rated capacity, the additional fluid volume does provide a buffer against heat soak. However, a deep pan is not a solution to an undersized transmission cooler or a towing load that exceeds the transmission’s rated capacity. If you’re buying a deep pan to compensate for chronic overheating, address the root cause — cooler sizing or load management — first.
The AOD/AODE/4R70W family shares the same basic pan bolt pattern, so fitment across those three units is straightforward. That said, verify clearance in your specific chassis before ordering — some lowered Mustangs and tightly packaged engine bays have limited transmission pan clearance.
How to Check Your 4R70W Fluid Level Correctly
The 4R70W has a dipstick tube on most applications. Checking the level at the wrong temperature gives a misleading reading — the fluid expands significantly with heat, and a “low” reading on a cold transmission often comes up to the correct level once you’ve reached operating temperature.
Correct procedure:
- Start the engine, idle for 3–5 minutes
- With the engine running and parking brake engaged, shift through each gear position: P → R → N → D → 3 → 2 → 1 → P. Hold each for 3–5 seconds
- Return to Park, leave engine running
- Pull the dipstick, wipe clean, reinsert fully, pull again
- Read the level — the FULL mark at operating temperature (approximately 150–170°F) is the correct reference point
Cold check: The dipstick has both COLD and HOT range marks. A cold check at ambient temperature (70°F) is useful only as a rough sanity check — it will not tell you whether the fluid is at the correct operating level.
Overfill risk: If the fluid level reads above the FULL mark on the hot range, do not drive until you remove the excess. Overfilled ATF aerates from the rotating components, and aerated fluid loses its hydraulic pressure consistency — shift flare, solenoid hesitation, and erratic line pressure follow quickly on the 4R70W.
Service Interval: When to Change the Fluid
Ford’s factory maintenance schedule for the 4R70W lists transmission service at 30,000 miles under severe-duty conditions (towing, frequent stop-and-go, extreme heat) and longer intervals for normal highway driving. In practice, many shops use a 30,000–60,000-mile interval as a standard recommendation regardless of driving conditions, because ATF degradation is cumulative and the cost of a pan-drop service is trivial compared to solenoid pack replacement or a full rebuild.
One pattern that comes up repeatedly with high-mileage 4R70W transmissions: owners who inherit a truck with 150,000 miles and unknown service history. A 2000 Grand Marquis at 150,000 miles that’s seeping from a pan gasket and shifting slightly differently than it used to is not necessarily on the way to failure — but it needs a fluid and filter service before you can evaluate whether the shift quality is a fluid issue or a mechanical one. Fluid first. Always.
The fluid-change-at-high-mileage question: There’s a persistent concern that changing ATF on a high-mileage transmission with a long service gap will trigger a failure. The reasoning is that degraded fluid provides some lubrication and that fresh fluid “loosens” debris. This concern is partially legitimate — aggressive flushing at high mileage can dislodge debris. However, a standard pan-drop service (not a power flush) at 150,000 miles is the appropriate intervention. The multiple drain-and-fill approach described earlier is even more conservative and appropriate for uncertain service history.
The 4R70W vs 4R75W: Does the Fluid Spec Change?
No. The 4R75W and 4R75E use the same Mercon V specification as the 4R70W. The 4R75W was introduced around 2003 and features slightly different gear ratios and a strengthened output shaft, but the transmission case, pan, filter, and fluid specification are shared with the 4R70W. If you’re working on a 2004–2008 F-150 that Ford transitioned to the 4R75W, the fluid service procedure, capacity, and ATF specification are identical.
For more on differences between these two units including swap compatibility, see our 4R70W vs 4R75W differences and swap guide.
When Fluid Service Isn’t Enough: Knowing When to Rebuild or Replace
A 4R70W that slips under load, delays engagement from a stop, or has a harsh 1-2 shift that fluid service doesn’t correct is telling you something beyond ATF condition. The known weak points on this platform include:
- Servo bore wear — causes 2nd and 4th gear engagement problems, not correctable by fluid service alone
- Accumulator piston seal failure — creates harsh shifts, particularly 1-2 and 2-3
- 3-4 clutch pack wear — common on high-mileage units, shows as slipping or flare on 3-4 upshift
- EPC solenoid failure — causes erratic line pressure, often misdiagnosed as fluid-related
If you’ve done a proper fluid and filter service and the transmission still exhibits shift issues, the next step is a transmission-specific diagnostic before spending money on parts. Torque converter-related symptoms — shudder at highway cruise, vibration at 40–55 mph that disappears under light throttle — are a separate category; for that, see our 4R70W torque converter signs and symptoms guide.
For owners evaluating whether a fluid service, rebuild, or remanufactured replacement unit makes the most financial sense at a given mileage point, our 4R70W remanufactured vs used comparison covers that decision in detail. Replacement cost context is in our 4R70W replacement cost guide.
4R70W Fluid Service: Product Comparison at a Glance
| Product | Type | Best For |
|---|---|---|
| Laipz 4R70W Service Kit (fluid + filter + gasket) | Complete kit | DIY pan-drop, one-stop purchase |
| 4R70W Filter Kit (B0CJ979VF2) | Filter + gasket only | Shops stocking Mercon V in bulk |
| 4R70W Filter + Gasket Kit (B0D46DSJW7) | Filter + gasket only | Alternative filter-only kit, same OE fitment |
| Castrol Transmax 1 Gallon | ATF fluid | Exchange cycles, supplemental fill |
| TCI Deep Pan AOD/AODE/4R70W | Pan upgrade | Performance builds, heat management |
FAQ: 4R70W Transmission Fluid Capacity
What kind of transmission fluid does a 4R70W take?
The 4R70W requires Mercon V ATF across all model years (1993–2008). Ford discontinued the original Mercon specification in 2007. Do not substitute Mercon LV (for newer Ford units), Dexron VI (GM specification), or Type F ATF (no friction modifiers). Verify any universal ATF explicitly lists Mercon V compatibility on the label before using it in a 4R70W.
How many quarts does a 4R70W hold total?
Total system capacity is approximately 13.9 quarts for a complete dry fill, which includes the torque converter. A standard pan-drop service only returns 5 to 6 quarts because the torque converter retains fluid unless it has a separate drain plug (most stock units do not).
How many quarts for a drain and refill on the 4R70W?
A standard pan-drop service — removing the pan, replacing the filter and gasket, and refilling — uses approximately 5 to 6 quarts of Mercon V ATF. Start with 5 quarts, start the engine, cycle through gears, then check the dipstick at operating temperature and add in half-quart increments to reach the FULL mark.
What ATF does a 4R100 take?
The 4R100 (used in F-250/F-350 Super Duty trucks with the 7.3L Powerstroke and 5.4L gasoline engines) also uses Mercon V ATF. The 4R100 is a heavier-duty unit with a larger torque converter and different clutch pack configuration than the 4R70W, but the fluid specification is the same. Capacity is approximately 17 quarts for a complete dry fill; a pan-drop service returns roughly 6 to 7 quarts.
Is 150,000 miles too late to change transmission fluid in a 4R70W?
No — but the method matters. At 150,000 miles with unknown service history, avoid a pressurized flush. A pan-drop service (drop pan, replace filter and gasket, refill 5–6 quarts) is the appropriate intervention. For particularly neglected fluid — dark brown, burned smell, or visible metallic particles — a multi-stage drain-and-fill approach (three sequential drain-and-fills 50–100 miles apart) dilutes the degraded ATF gradually without the shock of displacing all fluid at once.
How do I know if my 4R70W fluid is due for a change?
Pull the dipstick and check the fluid on a white paper towel. Fresh Mercon V is bright red and translucent. Due-for-service fluid is darker pink to light brown with a slightly sweet or slightly burned smell. Fluid that is dark brown or black with a sharp burned odor, or that has visible metallic particles, indicates clutch pack material in the fluid — at that point, a fluid service alone is not sufficient, and a transmission inspection is warranted before continuing to drive under load.
Can I use Dexron VI or a universal ATF in a 4R70W?
Ford specifies Mercon V for the 4R70W. Some universal ATFs claim compatibility with both Mercon V and Dexron applications, but friction modifier packages differ between specifications. Using Dexron VI specifically introduces a risk of shift quality change because Dexron VI has a lower viscosity and different friction characteristics than Mercon V. If you use a universal ATF, it must explicitly state Mercon V compatibility — not just claim compatibility with Ford transmissions in general.
What happens if I overfill the 4R70W?
Overfilling is a more common problem than most owners realize. Excess fluid in the pan gets aerated by the rotating ring gear and planetary carrier components. Aerated ATF loses consistent hydraulic pressure, which causes erratic shift quality, solenoid response issues, and elevated operating temperature. If you overfill, drain the excess immediately — do not drive the vehicle. Always check fluid level at operating temperature with the engine running and the transmission in Park.
For related transmission coverage on this platform, see our 4R70W compatibility chart and fitment checklist and our 4R70W 4×4 vs 2WD fitment guide.
