Last updated: June 2026
Quick Answer: The Aisin AS69RC holds 7.2 quarts (6.8 liters) for a drain-and-fill service with the stock pan. Dry fill capacity — after a complete teardown — is approximately 24 quarts. For every service interval, use only an Aisin-approved ASRC-specification ATF; Mopar part 5189977AD (or equivalent) is the manufacturer-stated fluid for this unit.
A drain-and-fill on the Aisin AS69RC sounds simple until you realize that conflicting information online — ranging from 6 quarts to 11 quarts — can leave you underfilling a 6-speed unit that’s mated to a 6.7L Cummins and expected to haul a 26,000-lb gooseneck. Getting the fluid level wrong on this transmission isn’t a minor inconvenience; low fluid on the AS69RC leads to heat buildup, clutch pack wear, and the kind of shift flare under load that usually precedes a rebuild conversation. Here’s the accurate breakdown of what the transmission actually holds, what fluid goes in it, and what the service schedule looks like.
What Is the AS69RC and Which Trucks Use It?
The Aisin AS69RC is a 6-speed automatic transmission manufactured by Aisin Seiki (Japan) and used in Ram 2500, 3500, 4500, and 5500 trucks equipped with the 6.7L Cummins turbodiesel. It replaced the older Chrysler 48RE in heavy-duty applications and is paired with the Cummins starting with the 2007.5 model year in some configurations, though the Ram integration became consistent from 2013 onward.
Key platform differences matter here. The AS69RC fitted to DRW (dual rear wheel) Ram 3500, 4500, and 5500 models uses a slightly different gear ratio set compared to the SRW variant — and the fluid capacity is reported to differ by roughly 0.1 quarts between configurations, likely due to the additional space occupied by the extra pinion gears in the planetary set. That’s a minor difference in practice, but it’s worth knowing if you’re cross-referencing specs across forum threads.
The AS69RC should not be confused with the AS66RC — a related unit used in some earlier applications — or the 68RFE, which is the Chrysler-designed alternative found in lighter-duty Ram 2500/3500 configurations. If you’re not sure which unit is in your truck, the easiest verification is the ASRC designation stamped on the transmission case tag, or pulling the VIN and running it through the dealer’s parts system.
For a deeper comparison between these two Ram-platform transmissions, see our AS69RC vs. 68RFE comparison guide.
AS69RC Fluid Capacity — Exact Numbers by Service Type
This is the number that brings most people to this page. Here it is, clearly:
| Service Type | Fluid Capacity | Notes |
|---|---|---|
| Drain & Refill (stock pan) | 7.2 qts (6.8 L) | Pan drop not required; filter not changed |
| Pan Drop + Filter Replacement | ~9 qts | Additional fluid fills the new filter and sump |
| Dry Fill (complete rebuild) | ~24 qts | Includes torque converter, cooler lines, cooler |
Why the confusion exists: Forum threads and YouTube videos frequently cite different numbers because they’re describing different service procedures. A simple drain-and-fill without dropping the pan will only recover around 7 quarts because the torque converter retains a significant volume of fluid. A pan-drop service pulls more because you’re removing the accumulated sump volume. A dry fill after a complete rebuild — including flushing the cooler and lines — requires the full 24-quart figure that was listed in Ram Body Builder documentation through 2012.
The service fill of 7.2 quarts (drain-and-fill) is confirmed in mopar1973man.com’s documented procedure, where the author notes buying 8 quarts to ensure they had enough on hand. That’s reasonable practice — having an extra quart to check the level after the initial startup sequence is better than being short.
AS69RC Fluid Type — What’s Approved and What Isn’t
The AS69RC requires an Aisin-specified ASRC-specification automatic transmission fluid. This is not a standard Dexron or Mercon fluid. Using the wrong ATF in this unit is a documented path to clutch pack degradation — the friction modifier chemistry in the Aisin fluid is specific to the clutch material used in this 6-speed.
Manufacturer-approved fluids for the AS69RC:
| Fluid | Specification | Notes |
|---|---|---|
| Mopar ASRC ATF (5189977AD / 5189966AD) | Aisin ASRC | OEM-spec, dealer-sourced |
| Mopar ASRC ATF (5189966AE) | Aisin ASRC | Updated part number; same spec |
| Castrol TranSynd 668 | TES 668 / Allison-approved | Cross-listed as acceptable in some Ram service docs; verify with your specific model year |
| Mobil 3309 ATF | Aisin-approved substitute | Used by Randy’s Transmissions in their AS69RC service kits |
What to avoid: Generic multi-vehicle ATF, Dexron VI, Mercon V, or any fluid not explicitly carrying the ASRC or Aisin approval designation. The transmission will function short-term on the wrong fluid, but shift quality degrades noticeably — and clutch material contamination isn’t reversible without a rebuild.
The OEM path is Mopar 5189977AD or the updated equivalent. If you’re doing a fleet service or a shop-volume purchase, Castrol TranSynd 668 in 5-gallon pails becomes cost-effective and is listed in the Allison 1000 specification (TES 668), with cross-reference acceptability in heavy-duty Aisin applications — but confirm this against your specific model year’s service documentation before substituting.
At a Glance — AS69RC Service Products
| Product | Type | Qty Covered | Price |
|---|---|---|---|
| 6.7 HO AISIN AS69RC Service Kit (B0F96L6DJX) | Full kit: fluid + filter + gasket | 9 qts | Check on Amazon → |
| Mopar ASRC ATF 5189977AD (B00BV4D178) | OEM fluid, single quart | Per quart | Check on Amazon → |
| Laipz AS69RC Service Kit 10qt (B0DVHYX3HY) | Kit: ATF + filter, aftermarket | 10 qts | Check on Amazon → |
| Castrol TranSynd 668 5-Gallon (B0977Q8S49) | Synthetic ATF, bulk | ~18.9 qts | Check on Amazon → |
| Mopar ASRC ATF (B07XPD9994) | OEM fluid, single quart | Per quart | Check on Amazon → |
Product Picks: Best Fluids and Kits for the AS69RC
1. OEM Mopar AS69RC Service Kit — For Dealers and Shop Installs
Complete OEM-spec kit with filter, gasket, and 9 qts of ASRC fluid; covers pan-drop service in one order.
- OEM-spec Mopar fluid included
- Filter and gasket bundled
- Covers 2013–2024 Ram 2500/3500/4500/5500
- Correct ASRC ATF specification
- No Amazon reviews yet — limited purchase history to assess quality consistency
- OEM pan gasket is cork-rubber (not reusable — replace at every service)
- Price not confirmed; verify before ordering
This kit covers the pan-drop service at 60,000-mile intervals, where you drop the pan, replace the sump filter, and refill. At that service interval, 9 quarts is the right amount — it fills the sump, saturates the new filter, and brings the level up to spec after the initial startup procedure. The OEM cork-rubber gasket is a one-time use item; don’t reuse it after a pan drop regardless of how it looks.
The fluid included is Mopar ASRC spec — the same fluid the dealer uses. That matters on this platform because aftermarket “compatible” ATF has a track record of causing shift harshness in the AS69RC after 10,000–15,000 miles, particularly under tow load.
Who this is for: Ram 3500/4500/5500 owners doing a 60,000-mile pan-drop service who want a single-order, OEM-spec solution.
Who should look elsewhere: If you’re doing a simple drain-and-fill at 30,000 miles without dropping the pan, you don’t need the filter — buying fluid by the quart is more cost-effective for that service.
2. Mopar ASRC ATF 5189977AD — Per-Quart OEM Fluid
OEM-spec single-quart ASRC fluid; the correct choice for top-offs and drain-and-fill services.
- OEM Mopar specification
- Correct ASRC friction modifier chemistry
- Single-quart format for precise fill
- Direct dealer-equivalent fluid
- Per-quart cost adds up for full pan-drop service
- No bulk packaging on this ASIN
- Part number superseded in some model years — verify current equivalent
For a 30,000-mile drain-and-fill — no pan drop, no filter — you need 7.2 quarts with the stock pan. That means buying 8 quarts to have enough on hand after the startup procedure levels out. On a 2018 Ram 3500 DRW with a Cummins pulling flatbed loads regularly, one Ram community user noted the drain-and-fill interval keeps fluid color acceptable, but skipping even one service interval showed noticeably darker fluid on the dipstick — which on the AS69RC typically correlates with elevated clutch pack wear.
The per-quart format is appropriate for top-offs after a minor fluid loss or checking the level post-service. It’s not cost-efficient for a full pan-drop service when kits are available.
Who this is for: Owners doing drain-and-fill services who want to source OEM fluid and already have a filter on hand, or who need a top-off quart.
Who should look elsewhere: Full pan-drop service — the kit-format products (B0F96L6DJX or B0DVHYX3HY) are more efficient.
3. Laipz AS69RC Service Kit — Aftermarket Kit with 10-Qt Coverage
Aftermarket kit with 10 qts ATF and filter; covers pan-drop service with one spare quart; verify fluid spec before using on warranty-period transmissions.
- 10-quart volume covers pan-drop with margin
- Filter included
- Fits 2013–2024 Ram 3500/4500/5500
- Cost-effective alternative to OEM kit
- Aftermarket fluid — verify ASRC specification compliance before use
- No Amazon review history available to assess long-term shift quality
- Not recommended during OEM warranty period without spec confirmation
The 10-quart volume gives you a margin — 9 quarts for the service, 1 quart left over for checking the level after the initial run-up. That’s a practical advantage over kits that match the exact fill volume, since real-world fluid retained in components means actual consumption varies.
The concern with any aftermarket AS69RC fluid is the ASRC specification. The AS69RC’s clutch pack material is calibrated for Aisin-specific friction modifier chemistry. If the aftermarket fluid doesn’t meet the actual Aisin spec — not just “compatible” — you’ll notice shift quality degradation under load within 15,000 miles. Confirm the fluid in this kit carries the ASRC designation before using it, particularly if your truck is still under a transmission warranty.
Who this is for: Out-of-warranty Ram 3500/4500/5500 owners looking for a cost-effective kit and comfortable verifying fluid spec compliance independently.
Who should look elsewhere: Any truck still under Mopar or extended powertrain warranty — use OEM fluid to avoid warranty complications.

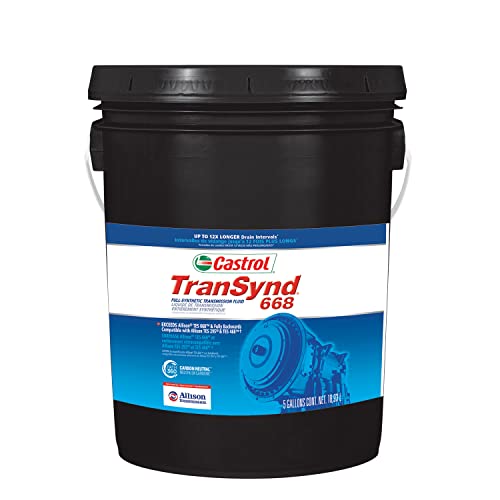

4. Castrol TranSynd 668 — Bulk Synthetic for Fleet and Shop Use
TES 668 full-synthetic ATF in bulk format; cross-listed as acceptable in heavy-duty Aisin applications, but confirm against your specific model year service docs before use.
- Full-synthetic formulation
- Bulk 5-gallon format reduces per-quart cost for fleets
- TES 668 specification (Allison-approved)
- Extended service interval potential vs. conventional ATF
- TES 668 is not identical to Mopar ASRC spec — verify cross-reference for your specific model year
- 5-gallon pail creates leftover volume unless used for multiple trucks
- Not OEM-sourced; some dealers will void warranty claims if non-Mopar fluid is used
The TranSynd 668 shows up in AS69RC service threads because it’s used in Allison 1000 applications — another heavy-duty 6-speed — and the Allison TES 668 specification overlaps with some Aisin approval language. Randy’s Transmissions uses Mobil 3309 ATF (a different Aisin-cross-referenced fluid) in their AS69RC service kits. The principle is similar: there are non-Mopar fluids that meet the underlying Aisin specification.
For a shop running multiple Ram 3500/4500/5500 trucks in a commercial fleet, the 5-gallon pail makes cost sense. But confirm the model year compatibility before substituting on any truck under warranty. Mopar’s warranty language is clear that non-OEM fluids can complicate warranty claims on driveline components.
Who this is for: Fleet operators or shops servicing multiple AS69RC units who want to reduce per-unit fluid cost with a bulk synthetic option.
Who should look elsewhere: Individual truck owners doing a single service — the per-quart economics don’t favor the 5-gallon pail unless you have multiple vehicles using the same fluid.
5. Mopar ASRC ATF (B07XPD9994) — Single-Quart OEM, Updated Listing
OEM Mopar ASRC fluid in single-quart format; correct specification for AS69RC drain-and-fill services.
- OEM specification confirmed
- Direct replacement for 5189966AD/AE
- Single-quart format for precise fill control
- Suitable for all model year AS69RC applications
- Single-quart format is not cost-efficient for full pan-drop services
- Price per quart is higher than bulk alternatives
- Amazon ASIN listing should be verified for current Mopar part number
This is functionally the same product as B00BV4D178 — OEM Mopar ASRC fluid in a single-quart bottle. The distinction is the Amazon listing. If one ASIN shows as unavailable, the other typically ships from the same source. For a 7.2-quart drain-and-fill, order 8 quarts minimum. For a 9-quart pan-drop service, order 10.
AS69RC Service Intervals — The Full Schedule
The mopar1973man.com documentation (confirmed from a 2014 Ram 3500 owner at 33,445 miles) aligns with the manufacturer-stated service schedule. This is the pattern:
| Mileage | Service Required |
|---|---|
| 30,000 mi | Drain & fill — 7.2 qts, no pan drop |
| 60,000 mi | Pan drop + filter replacement + refill — ~9 qts |
| 90,000 mi | Drain & fill — 7.2 qts |
| 120,000 mi | Pan drop + filter replacement + refill — ~9 qts |
The pattern repeats: every 30,000 miles is a service event, alternating between drain-and-fill and full pan-drop service. This is the manufacturer-stated interval for normal operating conditions.
Important caveat on towing applications: The AS69RC runs significantly hotter under sustained tow load — especially on grades. One Ram 2500/3500 community perspective notes that trucks pulling goosenecks at highway speeds on mountain grades can see transmission temperature climb into ranges that accelerate fluid degradation. If your truck tows regularly at or near GCWR, consider shortening the service interval to 20,000 miles between drain-and-fills. Transmission temperature data from a scan tool is more useful than calendar mileage alone for determining service timing on working trucks.
AS69RC Drain & Fill Procedure — Step by Step
This is not a beginner-level job, but it’s well within reach for someone comfortable with basic undercarriage work. The AS69RC drain plug is accessible without dropping the pan for standard service intervals.
Tools and materials needed:
- 3/8″ drive ratchet and appropriate socket for drain plug (refer to your specific model year service manual for torque spec)
- Large drain pan (minimum 8-quart capacity)
- Fluid pump or fill hose for transmission fill port
- 7–8 quarts of Aisin ASRC-spec ATF (for drain-and-fill)
- Transmission fill plug socket (typically 10mm square drive)
- Torque wrench
Drain plug torque: The AS69RC drain plug torque specification is listed in the Ram service manual. Verify the exact figure for your model year — do not overtorque the aluminum pan threads. If you’re not working from a current service manual, the dealer parts counter can typically confirm this spec.
Procedure overview:
- Warm the transmission to normal operating temperature (10–15 minutes of driving). Draining cold fluid leaves more old fluid behind in the valve body and converter passages.
- Raise and support the truck safely. Do not work under a vehicle supported only by a floor jack.
- Position the drain pan under the transmission drain plug.
- Remove the drain plug and allow fluid to drain completely — typically 10–15 minutes.
- Reinstall the drain plug and torque to manufacturer specification.
- Locate the transmission fill port (check your service manual for location on your model year).
- Pump in 7.2 quarts of ASRC-spec ATF.
- Start the engine. Cycle through all gear positions (P-R-N-D and manual ranges) with the truck stationary and parking brake applied.
- Check fluid level with the engine running and transmission at operating temperature. Add fluid in small increments (0.25 qt) until level is correct.
- Reinstall fill plug and torque to specification.
Initial startup note: After refilling, the fluid level will read low until the transmission has cycled through all gear positions and the torque converter has filled. This is normal. Do not add fluid until you’ve completed the gear cycle and rechecked with the engine running at temperature.
Break-in consideration after pan-drop service: After a filter replacement service, the new filter takes a few hundred miles to fully saturate and stabilize fluid pressure. Some shift firmness variation in the first 200–300 miles after a pan-drop service is reported by AS69RC owners and isn’t necessarily a sign of a problem — but if shift quality doesn’t normalize by 500 miles, a fluid level recheck and fluid pressure scan is warranted.
AS69RC vs. 68RFE — Key Differences for Fluid Service
Since these two transmissions are found in the same truck platform, the fluid service specs often get confused. Here’s the quick comparison:
| Spec | AS69RC (Aisin) | 68RFE (Chrysler) |
|---|---|---|
| Manufacturer | Aisin Seiki (Japan) | Chrysler/ZF |
| Drain & Fill Capacity | 7.2 qts | ~5–6 qts (manufacturer-stated; verify for model year) |
| Fluid Spec | ASRC (Mopar 5189977AD) | ATF+4 or SP4 |
| Service Interval | 30,000 mi | 30,000–60,000 mi (varies) |
| Pan Drop Interval | 60,000 mi | 60,000 mi |
| OEM Tow Rating Application | Heavier-duty (DRW/CDR applications) | Standard 2500/3500 SRW |
The 68RFE uses ATF+4, not ASRC — do not cross-contaminate these fluids. For a complete breakdown of how these two transmissions compare in reliability and rebuild scenarios, see our 68RFE vs. Aisin transmission comparison for Ram trucks.
Known AS69RC Service Issues and Troubleshooting Points
Snap ring recall: Several Ram community threads document a snap ring failure issue in the AS69RC — confirmed as a recall in some model years — where the snap ring retaining internal transmission components can fail, requiring a transmission drop and repair. If your 2013–2018 Ram 3500/4500/5500 hasn’t had this recall addressed, verify with your dealer by VIN before performing any other transmission service. A fresh fluid fill on a unit with a pending snap ring issue doesn’t help.
Overfill symptoms: The AS69RC doesn’t tolerate overfill any better than underfill. Overfilling causes fluid aeration — the fluid foams as it’s churned by the rotating components, leading to inconsistent line pressure, shift flare, and potential seal damage. If you’ve added too much fluid, it needs to come out through the fill port, not the drain plug — work in small decrements and recheck.
Fluid color as a diagnostic: Fresh ASRC ATF is red and translucent. At service intervals, expect the fluid to be darker — amber to light brown is acceptable. Dark brown, black, or fluid with a burnt smell indicates friction material contamination and warrants a pan-drop inspection of the filter and sump before simply refilling. Don’t mask clutch pack wear with fresh fluid.
Hard towing and service intervals: A Ram 3500 DRW pulling a 5,800-lb payload and gooseneck trailer at maximum GCWR generates sustained transmission heat. One Ram community observation notes that the AS69RC “likes to be worked” — it’s designed for load — but heat accumulation over long grades without an external transmission cooler shortens the fluid’s useful life faster than mileage alone would suggest. An external transmission cooler is a factory option on some trim levels; if your truck doesn’t have one and you’re at or near GCWR regularly, it’s worth evaluating.
For those considering a remanufactured replacement AS69RC or investigating rebuild options, see our guide on 68RFE slipping and shifting issues for parallel diagnostic context on the Ram diesel transmission platform.
How Much Does an AS69RC Fluid Service Cost?
Based on Ram community documentation and shop-rate context:
- Drain-and-fill (DIY): Cost of 8 quarts of ASRC ATF. Check current Amazon prices using the shortcodes above.
- Pan-drop service (DIY): Cost of 9–10 quarts ATF + filter kit.
- Dealer or shop service (drain-and-fill): Approximately 6 quarts fluid at dealer per-quart pricing, plus 1–2 hours labor at shop rate, plus taxes and fees. One Ram community thread puts this at roughly $96–$150 in fluid cost plus labor — confirm with your local dealer or shop for current rates.
- Pan-drop service (shop): Add filter cost and additional labor time for pan removal and reinstallation.
The DIY cost advantage is meaningful here — particularly over multiple service intervals at 30,000-mile increments — and the AS69RC drain-and-fill is within reach for someone comfortable working underneath a truck. The pan-drop service is more involved and requires proper torque specs for the pan bolts; if you’re not working from the service manual, having a shop perform the 60,000-mile service is reasonable.
FAQ — AS69RC Transmission Fluid Questions
What fluid does the Aisin AS69RC use?
The AS69RC requires Aisin ASRC-specification ATF. The OEM fluid is Mopar 5189977AD (or superseded equivalents 5189966AD/AE). Some cross-reference fluids — including Mobil 3309 ATF and, in some applications, Castrol TranSynd 668 — are used in professional service kits, but verify the specific fluid’s ASRC approval before substituting, particularly on warranty-period vehicles.
How many quarts does the Aisin AS69RC take?
For a drain-and-fill service (no pan drop): 7.2 quarts (6.8 liters). For a pan-drop service with filter replacement: approximately 9 quarts. For a complete dry fill after a rebuild (including torque converter, cooler, and lines): approximately 24 quarts. Buy 8 quarts minimum for a drain-and-fill to have enough for the post-startup level check.
What is the difference between the AS69RC and the 68RFE transmission?
The AS69RC is manufactured by Aisin Seiki (Japan) and is used in heavier-duty Ram applications including DRW 3500, 4500, and 5500 trucks. The 68RFE is a Chrysler-designed unit used in lighter Ram 2500/3500 SRW configurations. They use different ATF specifications — ASRC for the Aisin, ATF+4 for the 68RFE — and have different fluid capacities and service intervals. They are not interchangeable. For a full technical comparison, see our AS69RC vs. 68RFE guide.
How many quarts do I need for a transmission drain and fill on the AS69RC?
7.2 quarts is the manufacturer-stated service fill for a drain-and-fill. In practice, buy 8 quarts — the extra 0.8 qt covers the post-startup level check where you may need to add a small amount to bring the level to the full mark on a warm, running transmission.
What is the AS69RC service interval?
Every 30,000 miles is a service event. At 30,000 and 90,000 miles: drain-and-fill (no pan drop). At 60,000 and 120,000 miles: pan drop, filter replacement, and refill. Trucks used in severe-duty towing applications may benefit from shortening the drain-and-fill interval to 20,000 miles — verify based on fluid condition and transmission operating temperatures.
Can I use Dexron or Mercon ATF in the AS69RC?
No. The AS69RC requires ASRC-specification ATF. Dexron VI, Mercon V, and generic multi-vehicle ATFs do not carry the ASRC specification and use different friction modifier chemistry. Using the wrong ATF in this transmission leads to clutch pack wear and shift quality degradation over time. This is not a recoverable situation once friction material is contaminated — a pan drop to inspect and correct is the minimum remediation.
Is the AS69RC transmission reliable for towing?
The AS69RC is designed for heavy-duty towing applications — it’s the transmission paired with the 6.7L Cummins in Ram 4500/5500 commercial configurations. It is generally considered more durable under sustained tow load than the 68RFE. However, fluid maintenance is critical: a documented snap ring failure recall on some 2013–2018 units, heat-related fluid degradation on trucks without external coolers, and the consequences of incorrect ATF use are the primary reliability concerns. The AS69RC rewards proper service; it doesn’t tolerate neglect at high load.
What happens if I overfill the AS69RC?
Overfilling causes fluid aeration — the rotating components churn the excess fluid into foam, which compresses under pressure and causes inconsistent hydraulic pressure in the valve body. The result is shift flare, delayed engagement, and in severe cases, seal damage from pressure spikes. If you overfill, remove fluid through the fill port in small increments and recheck at operating temperature with the engine running.
